Mazda B2200 Carb to EFI

Matt Cramer · Post by **Matt Cramer** » Mon Aug 31, 2009 6:08 am

Could you draw up a diagram of how you have it wired up now? I'd like to take a look...

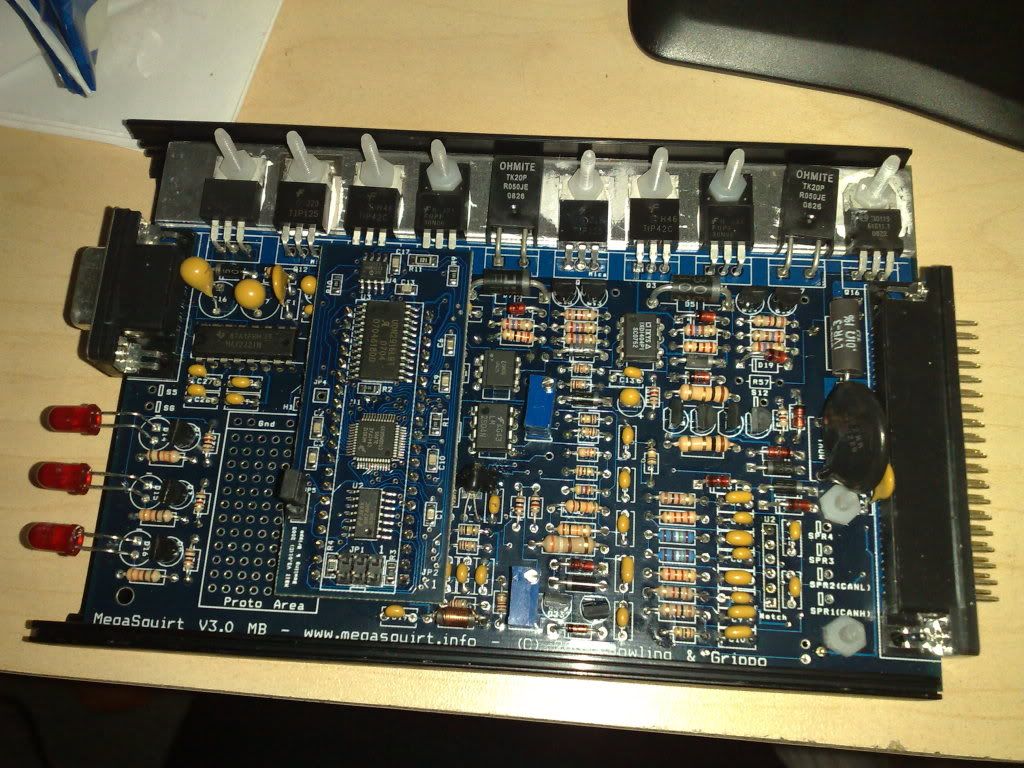

JG-2200 · Post by **JG-2200** » Mon Aug 31, 2009 1:18 pm

With the jumpers for hall/optical on the back.

Matt Cramer · Post by **Matt Cramer** » Tue Sep 01, 2009 7:24 am

Do you have a jumper across D1 and D2?

JG-2200 · Post by **JG-2200** » Tue Sep 01, 2009 12:14 pm

nope.

Matt Cramer · Post by **Matt Cramer** » Tue Sep 01, 2009 1:01 pm

Ok, you'll need to do this or you will not get a signal through them.

JG-2200 · Post by **JG-2200** » Tue Sep 01, 2009 5:21 pm

Interesting. Where can I find the write up or part of the installation for these?

or simply put which ends to jumper?

Matt Cramer · Post by **Matt Cramer** » Wed Sep 02, 2009 5:48 am

It's step 50A of the assembly docs. It looks like yours was originally put together according to step 50B (coil negative triggering).

JG-2200 · Post by **JG-2200** » Thu Sep 10, 2009 7:46 pm

It doesn't say to jumper d1 to d2, though... (if thats what you meant)

I have I do have a jumper in place of D1, on the back of the board though.

Matt Cramer · Post by **Matt Cramer** » Fri Sep 11, 2009 6:35 am

You don't jumper them to each other (well, you could) - you want to bypass each one with a jumper.
